seated leg press
pec deck
abdominal curl back extension
chest/shoulder press
hip abduction/adduction
lat pulldown
GLUTE BRIDGE
SEATED LEG CURL/EXTENSION
STANDING CALF RAISE MACHINNE
SEATED ROW
biceps/triceps
leg press
shoulder press
chest press
leg curl
Digital strenght
versus
Traditional strength
Adjust the accuracy
Adjust the way
Strength test
Training mode
Training guide
Training data
Digital strength
1kg
Touch panel precise adjustment
Intelligent evaluation weight training
standard, centrifugal, isokinetic, elastic...
Video guide, Interactive animation guide
Process and the result data, automatically by
the account login and synchronous record
Traditional
2.5kg/5kg
manual
not support
Fixed resistance
Fixed map
not support

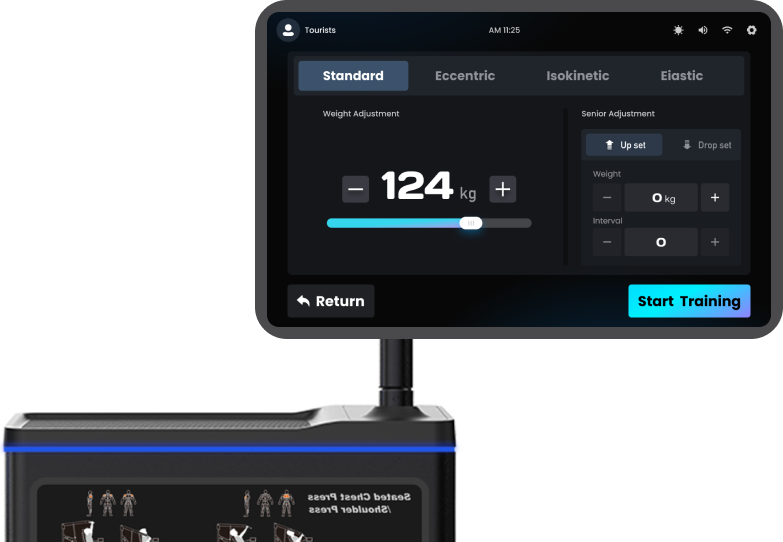

4 training modes
standard mode

Constant resistance linear output

Eccentric mode

higher resistance when cable retracted

isokinetic mode

faster speed with higher resistance

elastic mode

The longer rope pulled-out,
the greater resistance

digital
Management system
Easy to manage your training data in our digital system

data connections

A digital background management
system provided by YuanDong Smart.
It links mobile app and device through
data exchanging which brings the user
more intelligent, scientific, accurate
training effect

adaptive Digital resistance

Electric motor provides stable digital resistance

Advanced
training
mode

Increasing, drop set, eccentric increasing, different advanced mode, let your status further

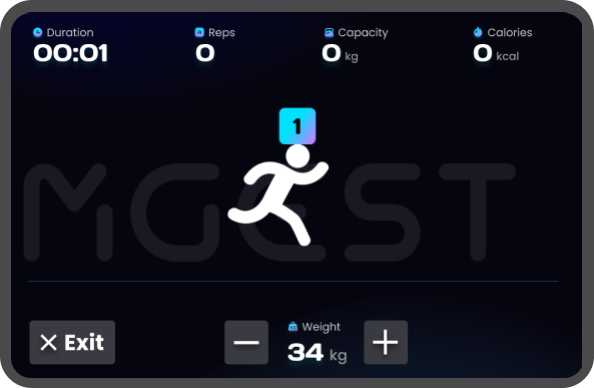

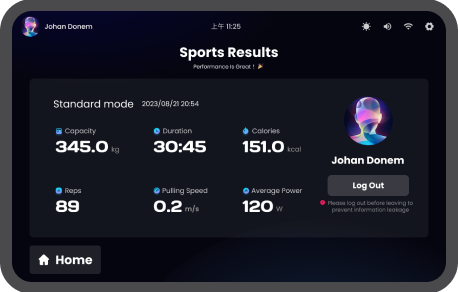

Data synchronization

Real-time display of training
process data.
Training results is
automatically recorded and
tracked at any time

Ambient
of the
lights

LED color light zone, create a
sense of science and
technology training
ambient

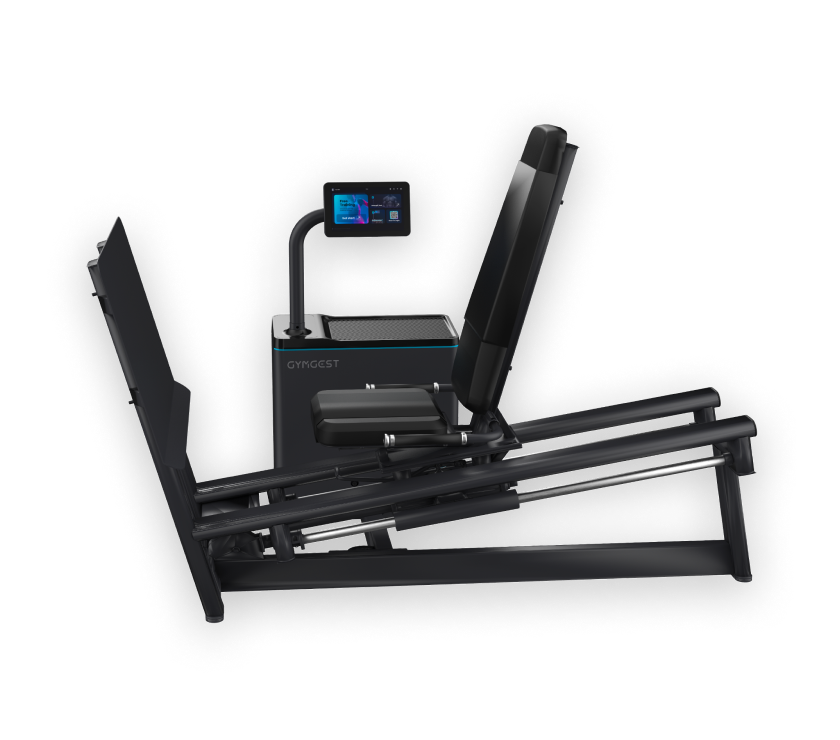

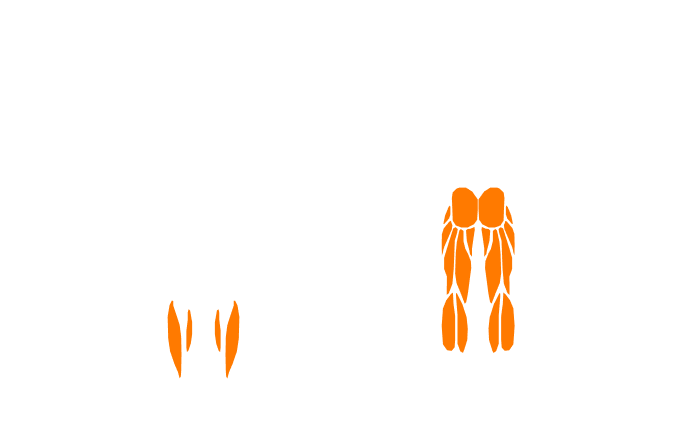

seated leg press
Main Features:

• Foot rests on the top and bottom of the pedals to target thighs, glutes and calves

• Four-bar pedal linkage helps maintain ideal ankle alignment throughout the movement

• Footplate has a sloped lower section to aid calf pressure positioning

• The four-bar linkage mechanism amplifies the output resistance of the motor by 1.2 times, and the maximum training weight reaches 140kg

Training Site
Max Resistance
164KG
Width
124cm
Min Resistance
44KG
Height
128cm
Screen size
10.1 inches
Length
189cm

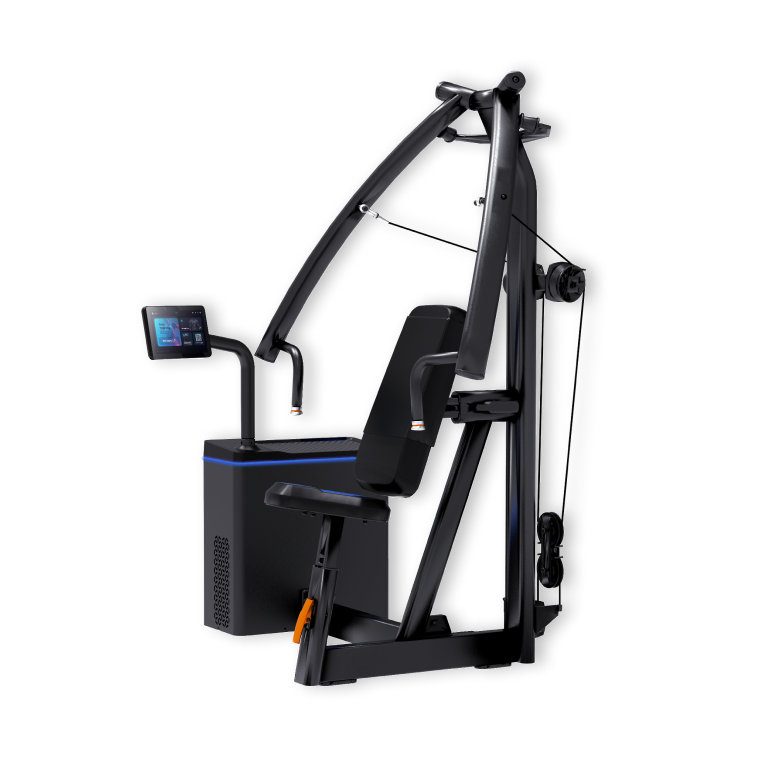

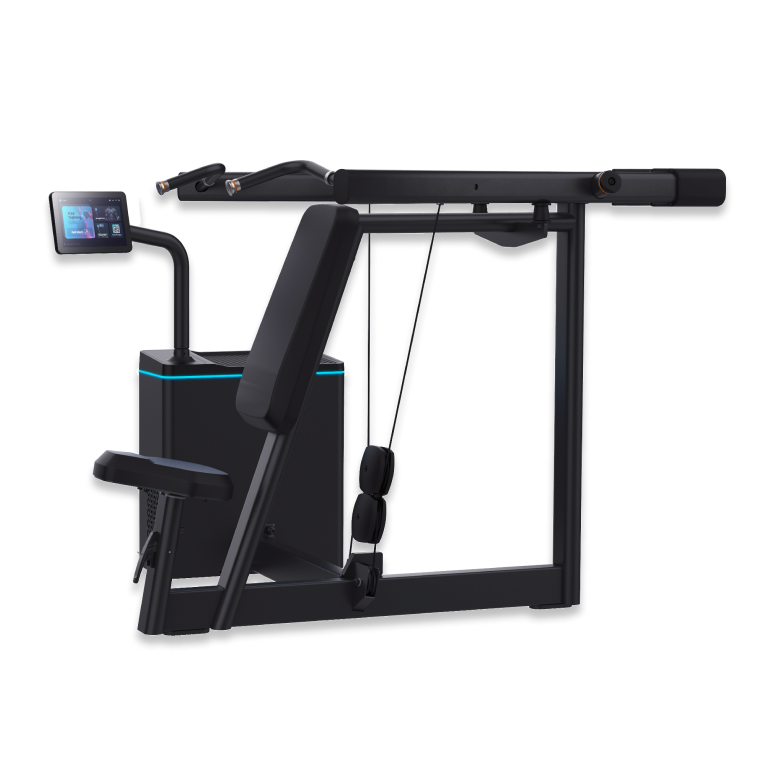

pec deck
Main Features:

• Dual-function stationary machine for training the pectoralis major and deltoids

• Multiple handles and range of motion adjustment facilitate positioning for these exercises

• The seat can be adjusted to accommodate users of various sizes

Training Site
Max Resistance
73KG
Width
118cm
Min Resistance
5KG
Height
208cm
Screen size
10.1 inches
Length
156cm

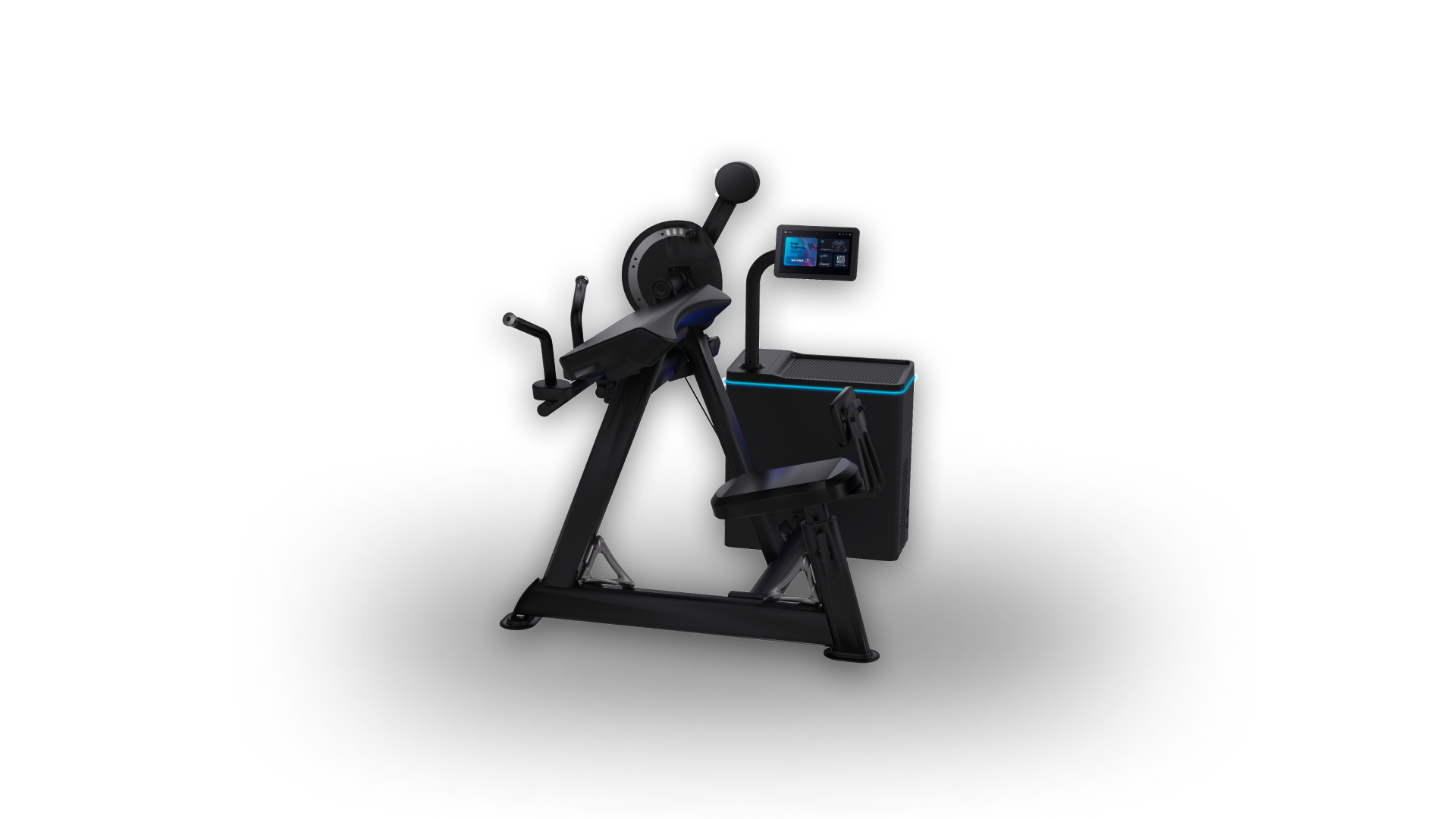

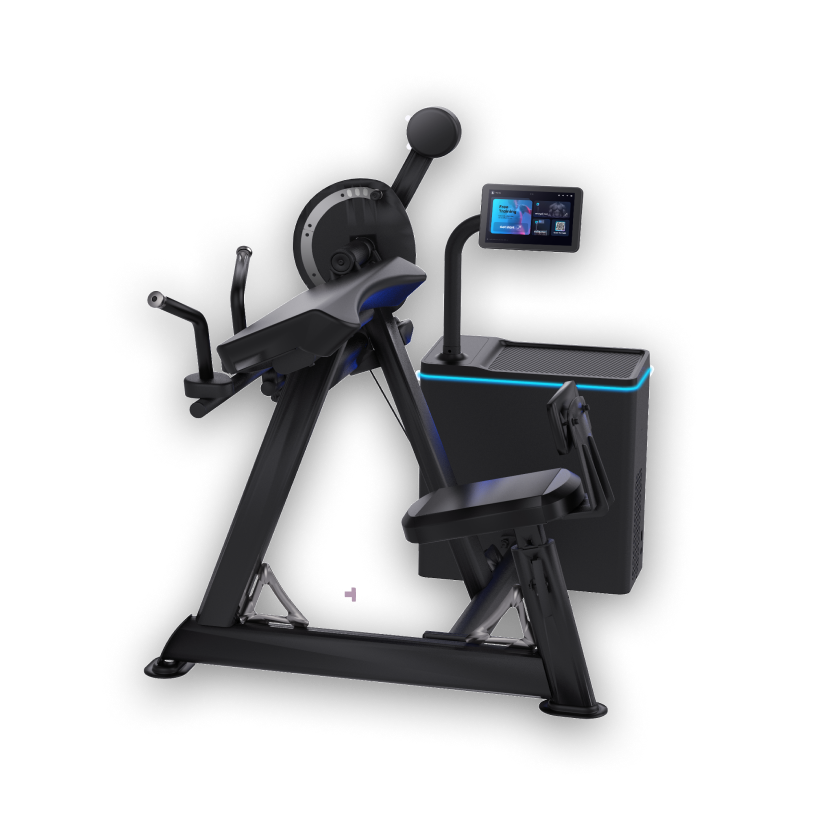

abdominal curl back extension
Main Features:

• The two-body butt training machine saves floor space and can be switched quickly

• Thigh pads and foot support provide comfort and stability

Training Site
Max Resistance
64KG
Width
116cm
Min Resistance
11KG
Height
117cm
Screen size
10.1 inches
Length
116cm
chest / shoulder press
Main Features:

• Seat and back cushions are adjusted to the proper pressing angle

• User can adjust two chest compression angles and one shoulder compression angle

• Chest and shoulder push with multiple grips

• Ergonomically designed dimensions

Training Site
Max Resistance
129KG
Width
156cm
Min Resistance
15KG
Height
118cm
Screen size
10.1 inches
Length
201cm

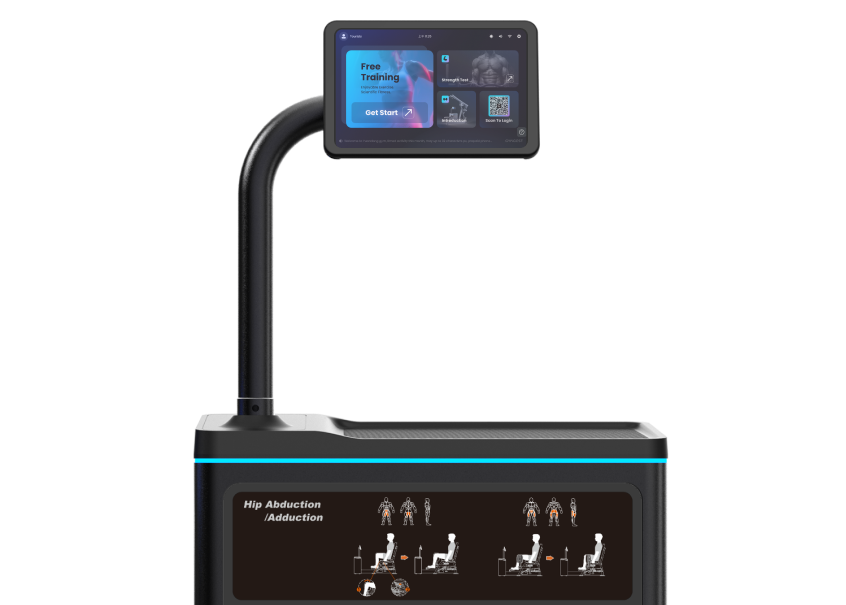

hip abduction / adduction
Main Features:

• The two-body butt training machine saves floor space and can be switched quickly

• high pads and foot support provide comfort and stability

Training Site
Max Resistance
120KG
Width
96cm
Min Resistance
6KG
Height
116cm
Screen size
10.1 inches
Length
143cm
lat pulldown
Main Features:

• The two-body butt training machine saves floor space and can be switched quickly

• Thigh pads and foot support provide comfort and stability

Training Site
Max Resistance
125KG
Width
147cm
Min Resistance
11KG
Height
190cm
Screen size
10.1 inches
Length
164cm
GLUTE BRIDGE
Main Features:

• The chest cushion allows the user to lean forward slightly and is adjustable

• The foot pedal can rotate, suitable for users of different heights

Training Site
Max Resistance
134KG
Width
128cm
Min Resistance
20KG
Height
117cm
Screen size
10.1 inches
Length
148cm

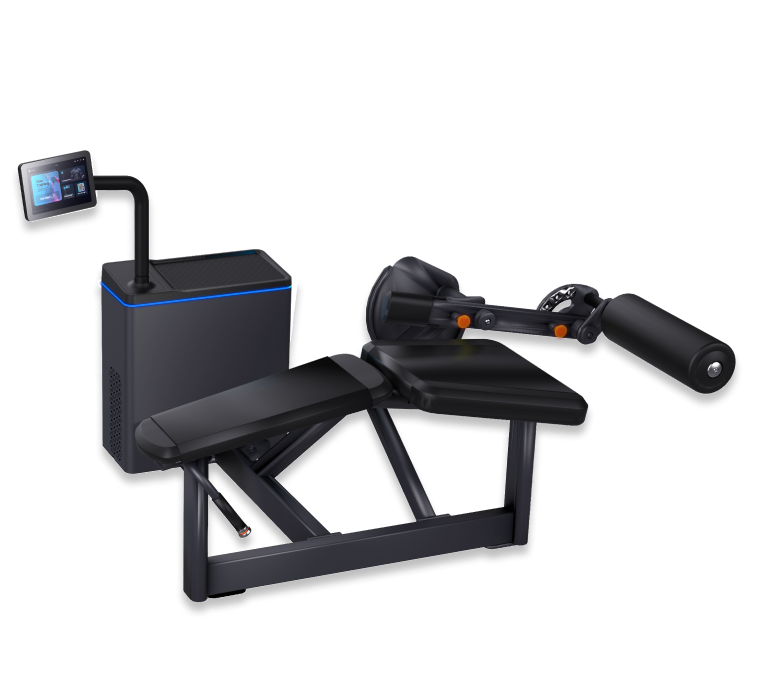

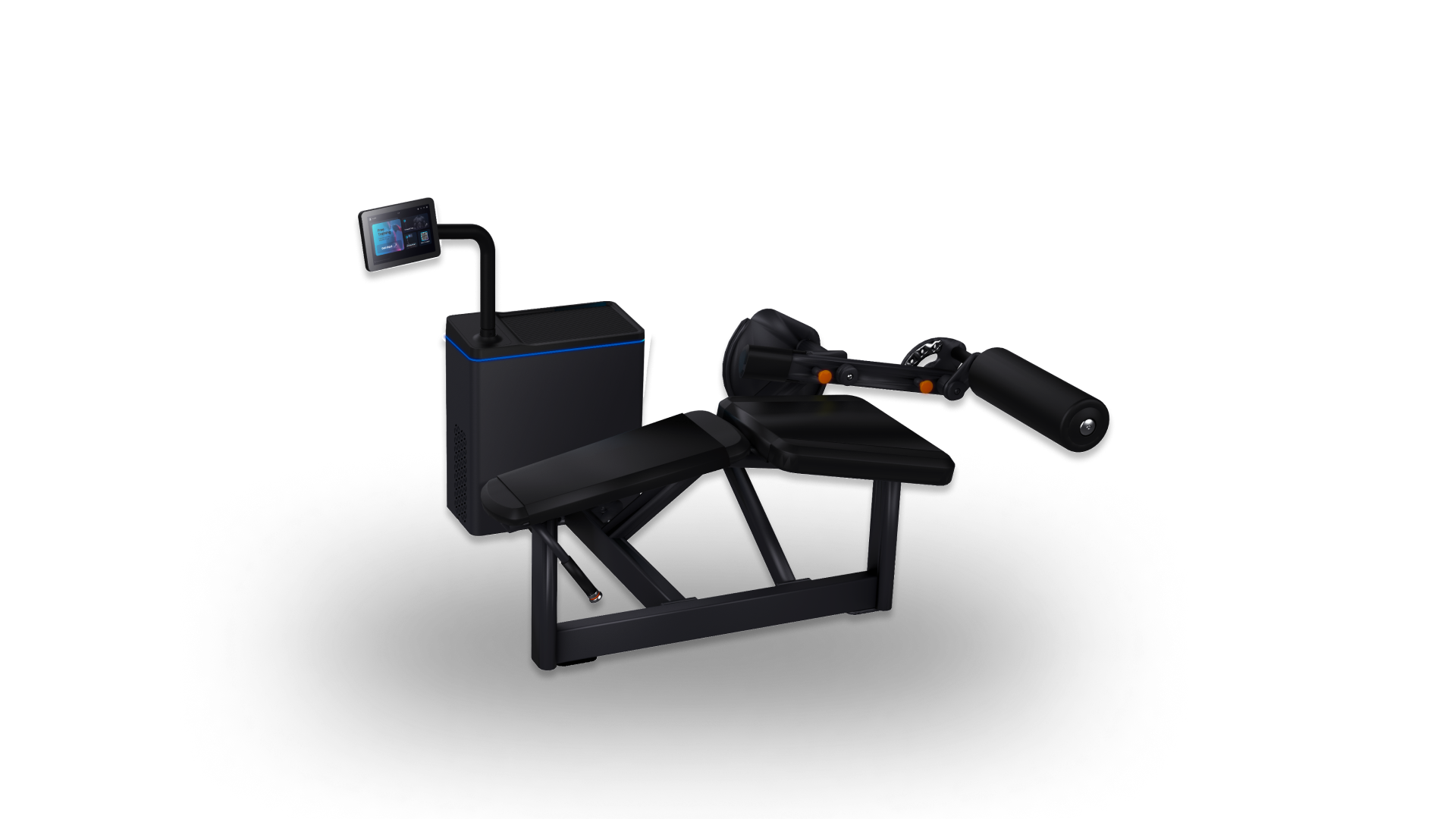

seated leg curl / extension
Main Features:

• Challenges opposing muscle groups, Quadriceps and Hamstrings

• Machines axis of rotation is optimized for proper feel for both exercise

• Exercises can be switched and adjusted without leaving seated position

Training Site
Max Resistance
93KG
Width
132cm
Min Resistance
8KG
Height
117cm
Screen size
10.1 inches
Length
144cm
STANDING CALF RAISE MACHINNE
Main Features:

• Upright positioning allows for training calf muscles across both knee and ankle joints

• Shoulder pads are adjustable to accommodate users of varying heights

• Non-slip foot plate provides stability and full range of motion in ankle joint

Training Site
Max Resistance
123KG
Width
118cm
Min Resistance
21KG
Height
163cm
Screen size
10.1 inches
Length
130cm
SEATED ROW
Main Features:

• Low row challenges the entire body with stabilization while pulling with arms and upper back muscles

• Dual foot bars allow users of all sizes a proper set-up and full range motion

• Low position of pulling handle helps keep elbows down, along sides of body

Training Site
Max Resistance
120KG
Width
117cm
Min Resistance
6KG
Height
117cm
Screen size
10.1 inches
Length
140cm
biceps / triceps
Main Features:

• Easy entry and positioning for abdominal and lower back exercises at all levels

• Seamless adjustment of machine cams between exercises

• Foot bar for stabilizing the lower body during movements

Training Site
Max Resistance
100KG
Width
143cm
Min Resistance
5KG
Height
202cm
Screen size
10.1 inches
Length
167.5cm

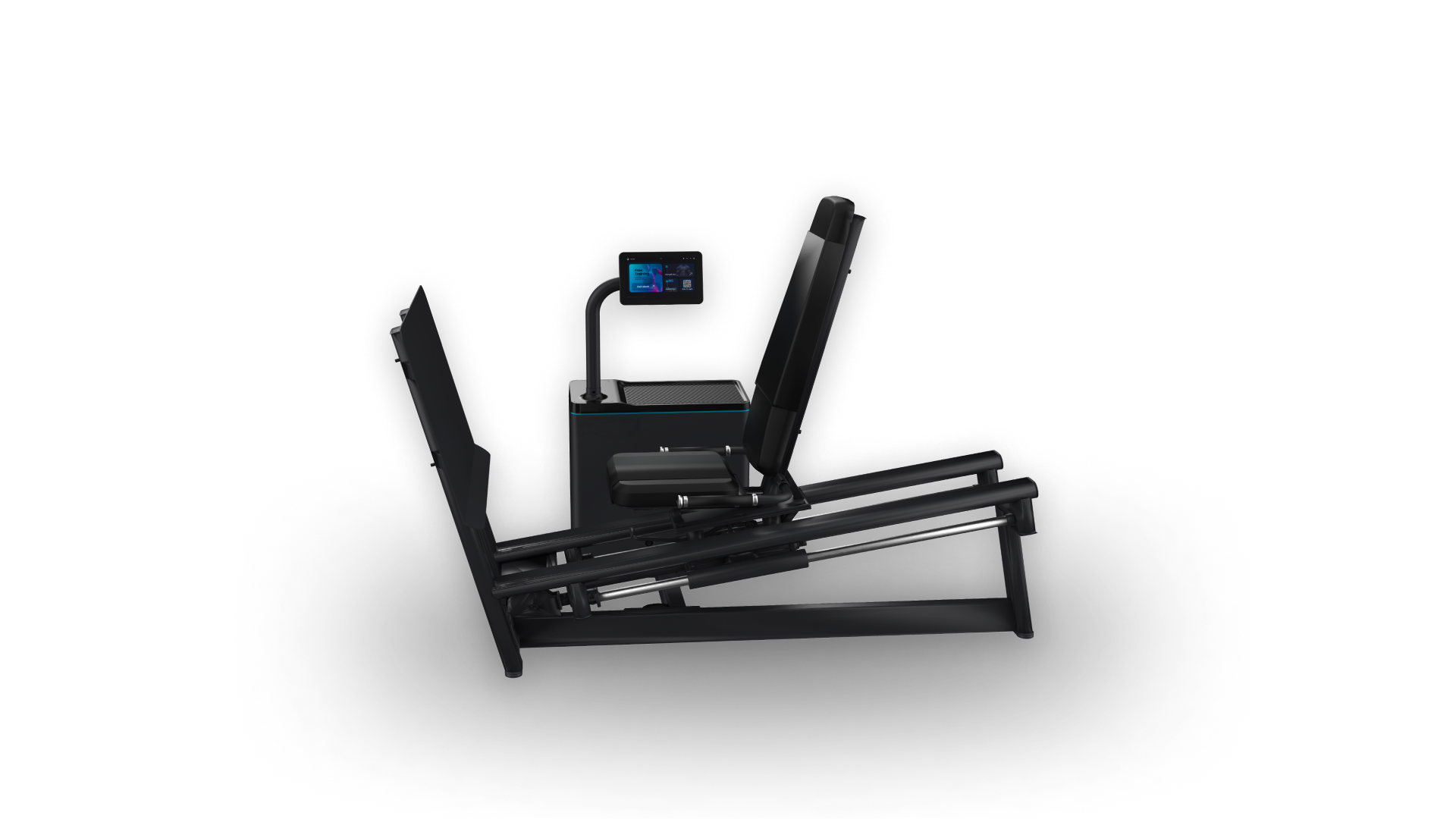

leg press
Main Features:

• Large footplates accommodate various foot placements and feature a slanted lower edge for calf exercises

• Inclined footplates offer support and mimic the squat motion

• Linear bearings ensure durability and provide a smooth pushing motion

Training Site
Max Resistance
151KG
Width
118cm
Min Resistance
15KG
Height
175cm
Screen size
10.1 inches
Length
142cm
shoulder press
Main Features:

• To offer both horizontal and parallel grip options, suitable for users with shoulder mobility limitations

• Allows for unilateral and bilateral movement patterns

• Seat adjusts for a customized range of motion

Training Site
Max Resistance
122KG
Width
160cm
Min Resistance
9KG
Height
175cm
Screen size
10.1 inches
Length
142cm
chest press
Main Features:

• Top pivots follow natural body movements for effective exercises

• Unilateral and bilateral movements correct muscle imbalances

• Vertical grips assist users with limited shoulder mobility

• Adjustable backrest for proper exercise range

Training Site
Max Resistance
122KG
Width
115cm
Min Resistance
8KG
Height
167cm
Screen size
10.1 inches
Length
182cm
leg curl
Main Features:

• Thigh and back pads are adjustable to align with the knee, keeping the user in line with the pivot axis

• Lower calf pads automatically adjust, reducing the need for manual adjustments

• Adjustable range of motion accommodates users with limited hamstring flexibility

Training Site
Max Resistance
120KG
Width
140cm
Min Resistance
6KG
Height
170cm
Screen size
10.1 inches
Length
115cm
